Weld Neck Flange
Home » Products » Steel Flange » Carbon Steel Flange » Weld Neck Flange

Weld Neck Flange

Share to:

Name:Weld Neck Flange
Astm a105,
Size: 1/2" -48" Forged steel, cast steel,
Standard: Ansi b16.5, din 2576, bs, en, jis, ghost

Quantity:

Weld neck flange specification:

Astm a105,
Size: 1/2" -48" Forged steel, cast steel,
Standard: Ansi b16.5, din 2576, bs, en, jis, ghost

The welded neck flange (WN flange) can redistribute the stress of the pipe, thereby reducing the pressure accumulated at the bottom of the flange. Compatible with high or low temperature and high pressure pipelines. Especially suitable for pipes or valves with PN greater than 2.5 Mpa.

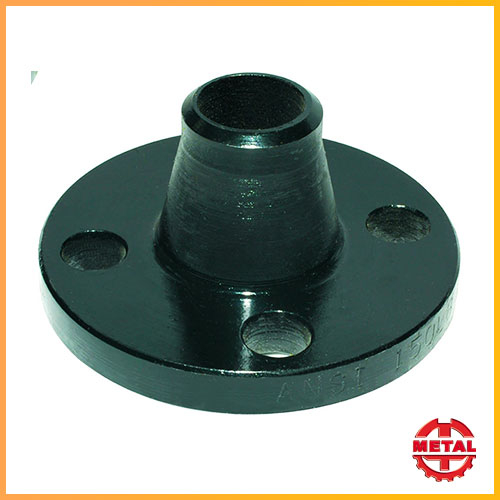

Weld-Neck


Two shapes of welding neck flange:
There are two forms (shapes) of welded neck flanges, one with reducing neck as we called reducing weld neck flange; One with a even diameter of typical long neck named as long neck weld flange.


Weld neck flange applications:

Welded neck flanges are mainly used for the connection of medium and high pressure pipelines. Most butt welded flanges and necks are also called nipple flanges.
Therefore, because there are multiple processes, the installation cost, labor cost and auxiliary material cost of the welding flange are high.

If you want to get product samples and the latest quotation, please leave your contact information or contact us
through the contact information below.
