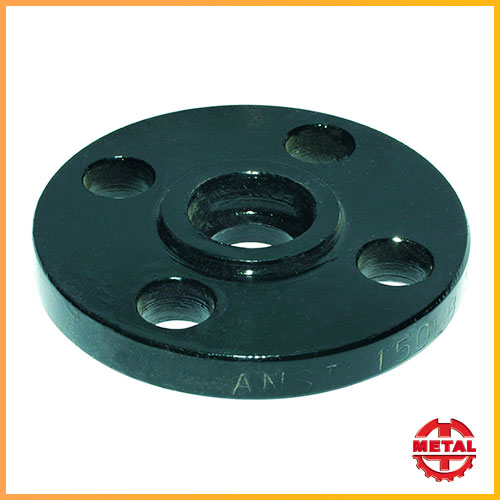

Socket Weld Flange

Size: 1/2" -48" Forged steel, cast steel,

Standard:ANSI B16.5, DIN 2576, BS, EN, JIS, GHOST

Socket welded pipe flanges are usually used for smaller size high pressure pipes. These pipe flanges are connected by inserting the pipe into the socket end and performing fillet welding around the top. This can ensure the unobstructed hole and better flow of fluid or gas inside the pipe. The sliding pipe flange with wheel hub has published specifications, ranging from 1/2" to 24". Coastal Flange provides socket welded pipe flanges of all material grades, specifications and sizes.

Socket welded pipe flanges are usually provided with convex, flat or RTJ faces. When socket welded pipe flanges need to add high-end surface, for socket welded pipe flanges below 400#, the standard height is 1/16". For socket welded pipe flanges of 400# and above, standard socket welded pipe flanges The height increase is 1/4".

We produce socket welded pipe flanges of all steel grades, including carbon socket welded pipe flanges, stainless steel socket welded pipe flanges and alloy socket welded pipe flanges. Coastal flanges also stock many different socket welded pipe flanges, which can be shipped at any time.

How many types of flanges are used in the industry?

Many types of flanges are manufactured in the industry, but there are 12 common flange types, including:

• Weld Neck

• Socket Weld

• Ring/Spacer

• Counter Bore

• Slip On

• Reducer

• Blind

• Hub/Collar

• Lap Joint

• Threaded

• Paddle Blind

• Spectacle Blind
